Project Immersed tunnel under the river IJ in Amsterdam
Contractor: Zinktunnel Noord/Zuidlijn Kombinatie VOF.
06/2003 – 06/2005
Value: €54,000,000
Between June 2003 and June 2005 I worked on the Noord-/Zuid Lijn in Amsterdam. This mega project is divided in several sections and I was as Project Engineer involved in the immersed tunnel under the river IJ, a.k.a. "contract 2.2".
On this project I was responsible for site establishment and planning of the structural works, the acquisition of the tunnel formwork, concrete, rebar and internal pre-tensioning systems. Besides that I was also responsible for managing the financial resolution of contract variations and negotiating those with the client.
|
|
|
facts & figures:
Built: 2003 – 2010
Location: Amsterdam
Structural Type: (immersed) 2 Rail Subway Tunnel
|
Role |
Name |
Part of structure |
|
Owner |
GVB Amsterdam |
|
|
Design |
Projectbureau Noord/Zuidlijn Amsterdam |
|
|
Architectural design |
Ingenieursbureau Noord/Zuidlijn Amsterdam |
|
|
Consultant |
Witteveen + Bos Enschede Royal Haskoning Rotterdam |
|
|
Construction |
Heijmans NV Strukton NV |
|
|
Formwork |
Heijmans Bekistingen BV Peri Nederland BV |
Tunnel formworks Stairways formworks |
|
|
|
|
|
|
|
|
Technical information |
||
|
Part of structure |
Description |
Value |
|
Tunnel elements
Prefab separation wall between tubes
|
reinforced concrete Rebar reinforced prefab concrete
|
60,000 m3 5,400 tonnes 3 x 140m of elements (1x6x0.2m)
|
|

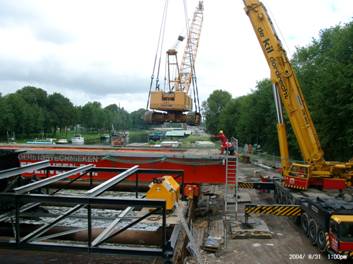

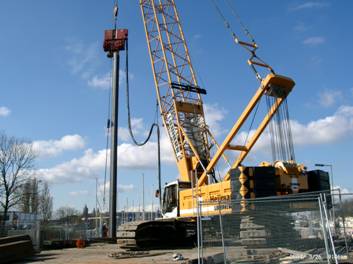

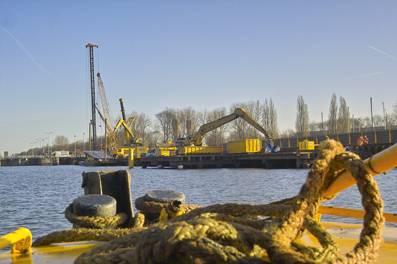

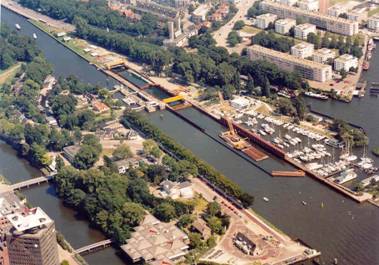

Dock Steel sheet piles and Steel Combiwalls Under water placed concrete
|
|
7,500 tonnes 11,000 m3
|
|
Dimensions |
||
|
|
Total length Subwaytunnel Noord/Zuidlijn |
1.1 km |
|
|
Length IJ-elements |
3 x 140m |
|
|
Length CS-element |
1 x 160 m |
|
|
Length In-situ tunnel |
340 m |
|
|
Soil excavated from construction dock |
60,000 m3 |
|
|
Soil excavated from trench in the riverbed |
175,000 m3 |
|
|
|
|
