Project Sophia-Railwaytunnel between Zwijndrecht and Papendrecht
Contractor: Tubecon I vof.
08/1999 – 06/2003
Value: €304,000,000
|
|
The Sophia railway tunnel is part of the "Betuwe route"; a dedicated freight railway connection between Rotterdam and the main German industrial areas ("Das Ruhr gebiet"). The Sophia Tunnel is one of two bored tunnels for this freight railway line. The contract was awarded on the basis of a Design & Construct arrangement.
This project has been carried out by a joint venture of 5 contractors, one of which was my home company Heijmans N.V. TUnnel Boor- en Engineerings COmbinatie Nederland (TUBECON v.o.f.)
The tunnel with a total length of approximately 8 km consists of 2 access ramps (two approach sections constructed as open trench or cut-and-cover-tunnels) with a length of 1,900m each, linked by over 4,200m of bored twin tunnel (internal diameter of 8,650m). The cut-and-cover section of the tunnel on the west side of the tunnel connects up with the “Kijfhoek” shunting yard and crosses the motorway A16 (Rotterdam - Antwep). The bored section underpasses the “De Rietbaan” and “Noord” rivers and the motorway A15 (Rotterdam - Arnhem/Nijmegen). The access ramp on the east side connects up at ground level with the section of the Betuweroute which is constructed east of the intersection with local road 'N214'. On this project I worked for one-and-a-half years on the west approach and over 2 years on the eastern approach as Project-engineer. I was mainly occupied with the planning and methodologies for the structural works; formwork, rebar and concrete pours but I also played an important role in quality- and document-control.
|
|
|
|
|
|
|
facts & figures:
Built: 1998 – 2005
Location: Between Zwijndrecht and Papendrecht
Structural Type: (Bored) 2 Railway Tunnel
|
Role |
Name |
Part of structure |
|
Owner |
ProRail / Rijkswaterstaat |
|
|
Design |
Management Group Betuweroute |
|
|
Architectural design |
Mari Baauw |
|
|
Consultant |
Grontmij / De Weger (Combination) Maidl & Maidl Holland Railconsult |
|
|
Construction |
BAM-NBM BV Heijmans NV Phillipp Holzmann AG HochTief AG Koninklijke Boskalis Westminster NV |
|
|
Formwork |
Peri Nederland BV Heuvelstaal BV Dijkhor BV Erba Holland BV |

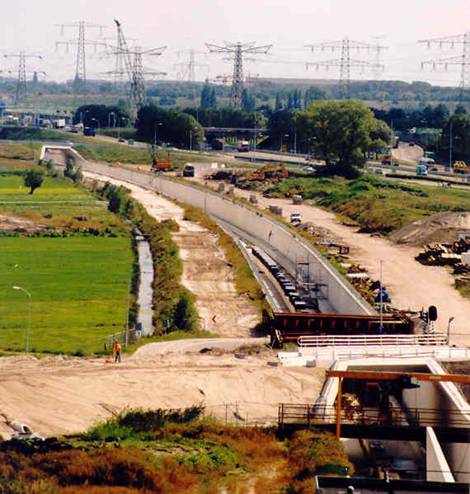

Eastern access ramp Eastern access ramp Western acces ramp Pathways |
|
|
|
|
|
Technical information |
||
|
Part of structure |
Description |
Value |
|
Eastern- and Western Access Ramp Prefab Concrete (Tunnel lining, so called “Tübbingen”) |
reinforced concrete reinforced prefab concrete
Rebar |
250,000 m3 100,000 m3
30,000 tonnes |
|

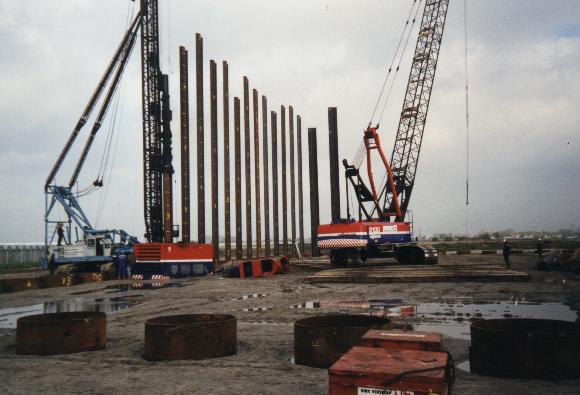

Steel sheet piles Steel Combiwalls |
|
20,000 tonnes 30,000 m2 |
|
Dimensions |
||
|
|
Total length Sophiaspoortunnel |
8.1 km |
|
|
Length eastern access ramp |
1,900 m |
|
|
Length western access ramp |
1,975 m |
|
|
Length bored tunnel |
4,240 m (each tube) |
|
|
Soil excavated from access ramps |
800,000 m3 |
|
|

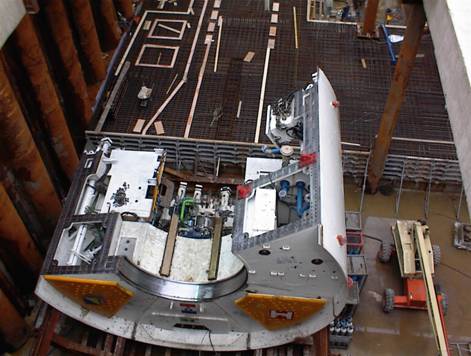

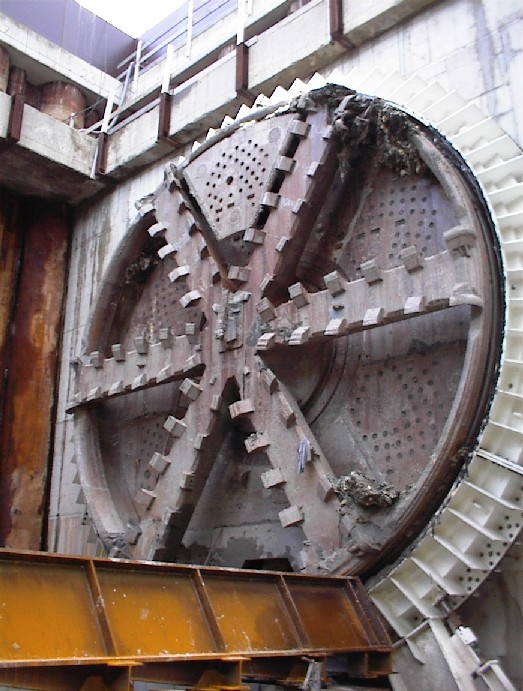

Soil excavated by TBM (Tunnel Boring Machine) |
650,000 m3 |
|
|
|
|
