Project
Great Belt Fixed Link, substructure (Denmark).
Contractor:
Great Belt Contractors (GBC).
Traineeship
02/1994 – 08/1994
Value:
€360.000.000,-
In 1994 I worked
as a trainee on this project. The traineeship was part of my Bachelor in Civil
Engineering at the
Hogeschool van
Utrecht, Faculty of Nature and Science. For a period of 7 months I lived in
Korsør, Denmark.

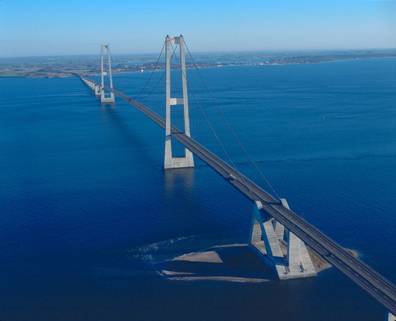

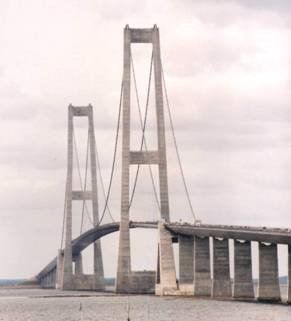

At that time the Great Belt Suspension Bridge was the largest project under construction in Europe and the bridge itself was on
it's way to set a new world record as the longest suspension bridge ever constructed at that moment time, with a free span of no less than 1,624m!.
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
facts
& figures:
Built: 1991 - 1998
Location: Between the islands of Funen and Zealand, Korsør, Vestsjælland,
Denmark
Structural Type: Suspension bridge
gravity-anchored
|
|
|
|
Role
|
Name
|
Part of
structure
|
|
|
|
Owner
|
Sund &
Baelt Holding A/S
|
|
|
Design
|
COWI
Consulting Engineers and Planners AS
|
Sub- and
superstructure
|
|
Architectural
design
|
Dissing+Weitling
arkitektfirma a/s
|
Sub- and
superstructure
|
|
Wind
tunnel testing
|
Danish Maritime
Institute
|
Superstructure
|
|
Consultant
|
Ben C. Gerwick Inc.
|
Substructure
|
|
Construction
|
Hochtief GmbH
Hollandse Beton
& Waterbouw BV
Ways &
Freytag AG
KKS A.S.
E. Pihl &
Søn A.S.
|
Substructure
|
|
Formwork
|
STREIF Baulogistik GmbH
|
Substructure
|
|
|
|
|
|
Technical
information
|
|
Part of
structure
|
Description
|
Value
|
|
Construction materials used
|
|
Cables
|
steel
|
18.648
wires of ø5mm
|
|
Deck
|
steel
|
57 sections
of 1,000 tonnes each.
|
|

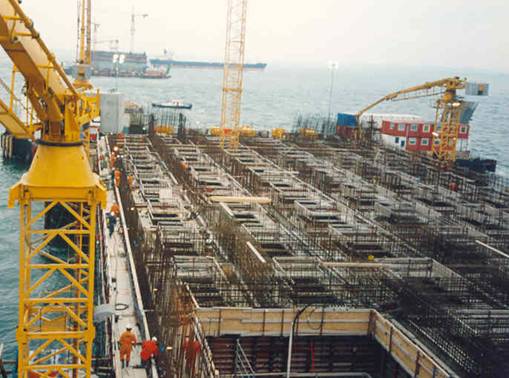

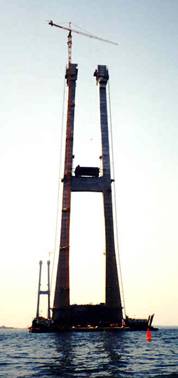

Pylons,
anchor blocks and approach span piers
|
reinforced
concrete
|
250,000 m3 of concrete
38,000 tonnes
of rebar
|
|
Dimensions
|
|
|
|
|
main span
|
1,624 m
|
|
|
pylon height
total length
of Great Belt East Bridge
|
254 m
6.8 km
|
|
|
total length
of bridgepart
|
2,694 m
|
|
|
span
lengths (anchorblock-pylon-pylon-ancherblock)
|
535 m - 1,624 m - 535 m
|
|
|
number of
cables
|
2
|
|
|
length of
eastern approach viaduct
|
2,529 m
|
|
|
length of
western approach viaduct
|
1,567 m
|
|
|
span
lengths of eastern approach viaduct
|
73 m - 12 x 193 m - 140 m
|
|
|
span
lengths of western approach viaduct
|
143 m - 7 x 193 m - 73 m
|
|
|
|
|
|
|
|
|
|
|
